New Bespoke Steel-Framed 1,500 Ton Grain Store and Link Drying Building

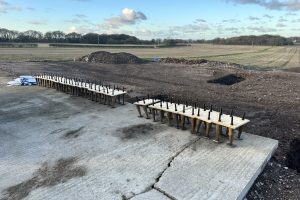

Nuthatch Construction was appointed to deliver a complete turnkey solution for this large-scale agricultural project. From initial groundworks and foundations to the final construction and fit-out of a new 1,500 ton grain store and linked drying building.

Project Overview

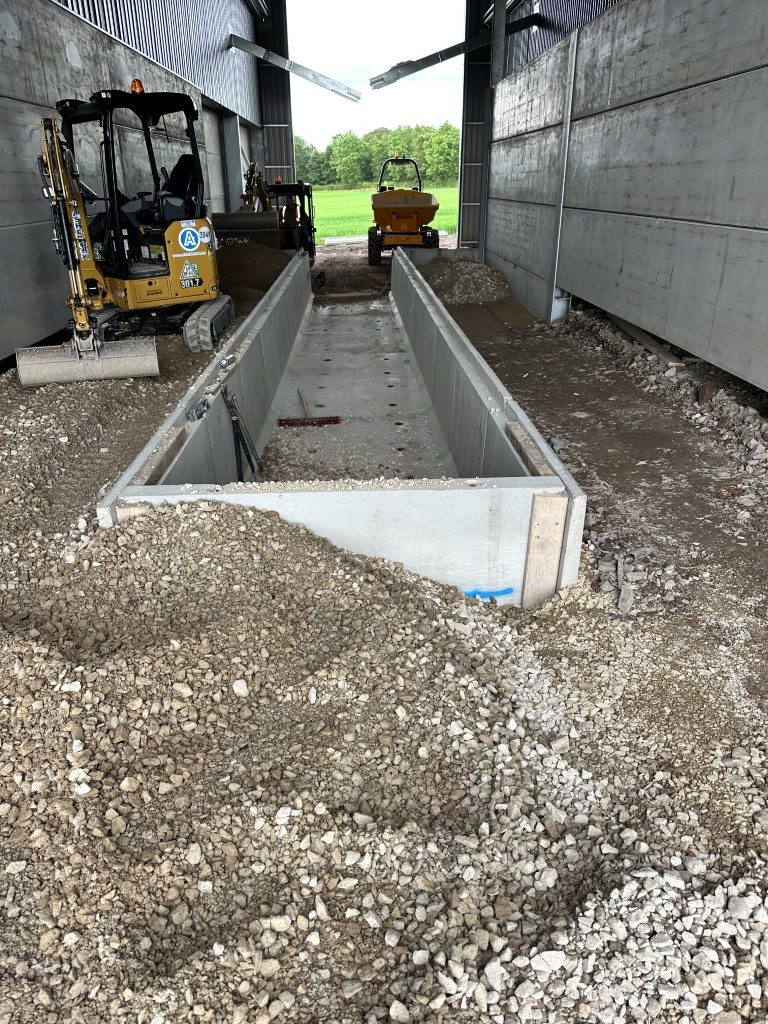

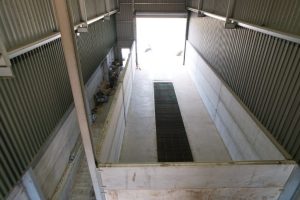

The development included a double-apex side extension with a purpose-built link building housing a grain dryer, tipping floor, and conveyor system (supplied by others). Working in close collaboration with the client, the building was tailored to meet the operational needs of their farming enterprise.

Key Features & Construction Details

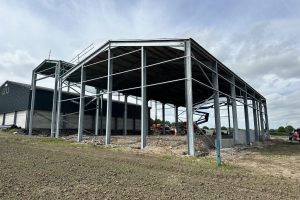

Steelwork & Cladding: We hot-dip galvanised the entire structural steelwork for maximum durability. Roof areas were clad with Profile 6 fibre cement sheets, complete with a closed ridge and barge boards, mounted on new cold-rolled Z purlins. Wall cladding consisted of 0.5mm box profile plastisol-coated steel sheets in Juniper Green. Theses were fixed onto steel cladding rails.

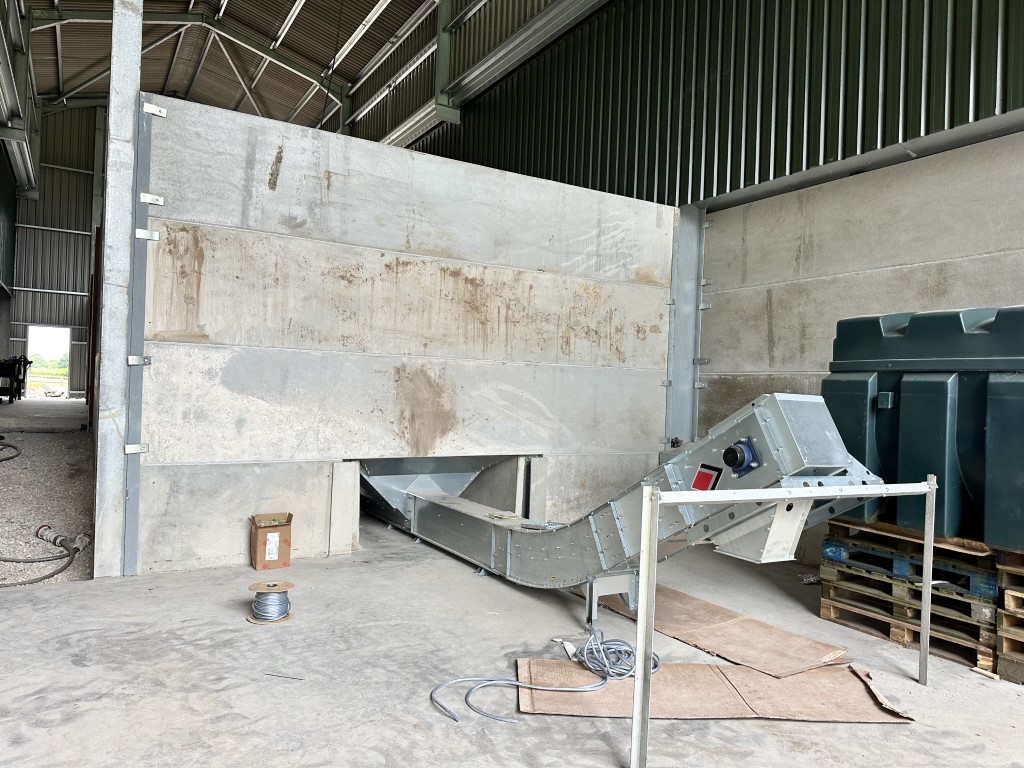

Concrete Panel Installation: We supplied and installed 180mm-thick precast concrete panels to the perimeter of both buildings and the internal walls of the grain store and link building. Vermin-proof galvanised shredder flashings were fitted throughout to protect stored produce.

Doors & Access: Four galvanised steel roller shutter doors were installed along with three Juniper Green pedestrian access doors for ease of entry and exit.

Flooring & Drainage: The internal and external areas received a new 200mm-thick concrete floor. Internally, the surface was levelled and power-floated; externally, it was finished with a brush and tamper technique to suit agricultural use. Nuthatch installed new manholes and drainage. And connected to the existing farm drainage infrastructure.

Result

The finished build is a high-quality, durable facility ready to support high-volume grain storage and drying operations. If we say so ourselves, it’s a job well done!
