Walton-on-Thames, London – Over Cladding works

dji_fly_20240308_095942_930_1709892238506_photo

April 11, 2024

Walton-on-Thames, London – Over Cladding works

mark Projects

Project Details

Over cladding of an existing agricultural storage building roof which had been leaking in badly.

The building had been previously converted to light industrial storage units some time ago.

The existing building and roof were previously used as an old agricultural potato store with sprayed insulation on the underside of the roof.

The new over cladded roof had 4x3in treated timbers installed and secured into the heavy steel purlins and existing roofing sheets.

Rock wool insulation was installed within the void between the new timbers on the roof / the old fibre cement roof and the new box profile roof.

0.7mm Goosewing grey plastisol coated steel sheets were installed and secured into the timber, along with the ridge and barge flashings to suit.

Gallery

Stone – Roof light renewal works

April 11, 2024

Stone – Roof light renewal works

mark Projects

Project Details

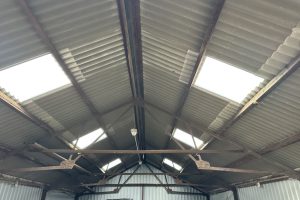

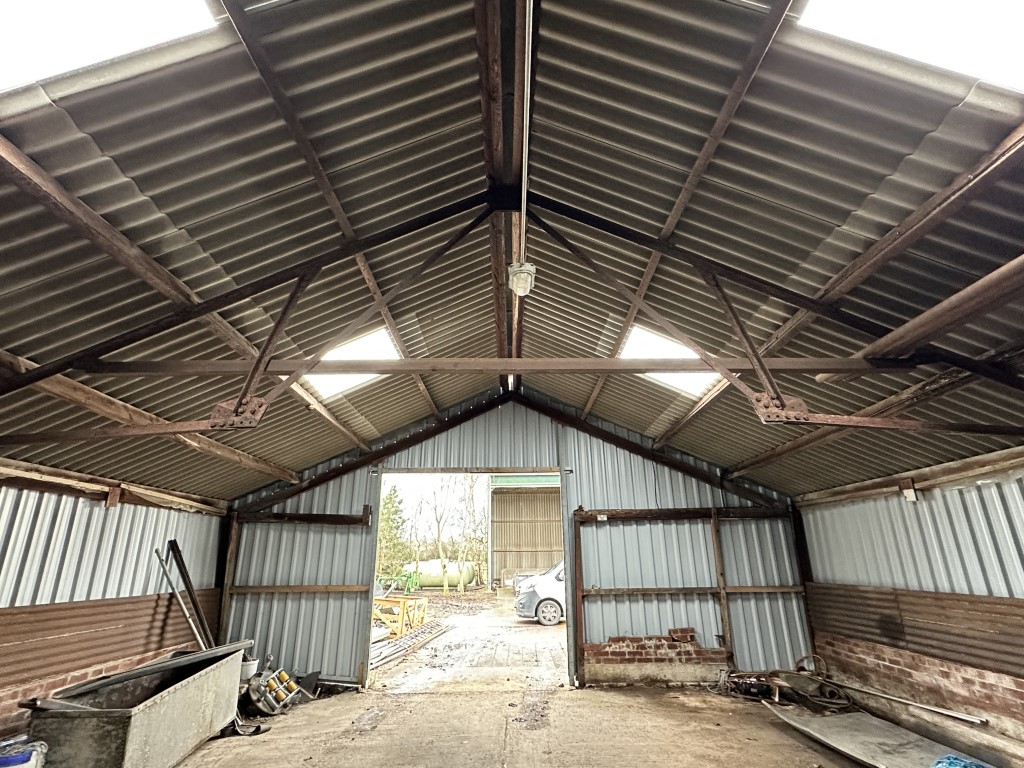

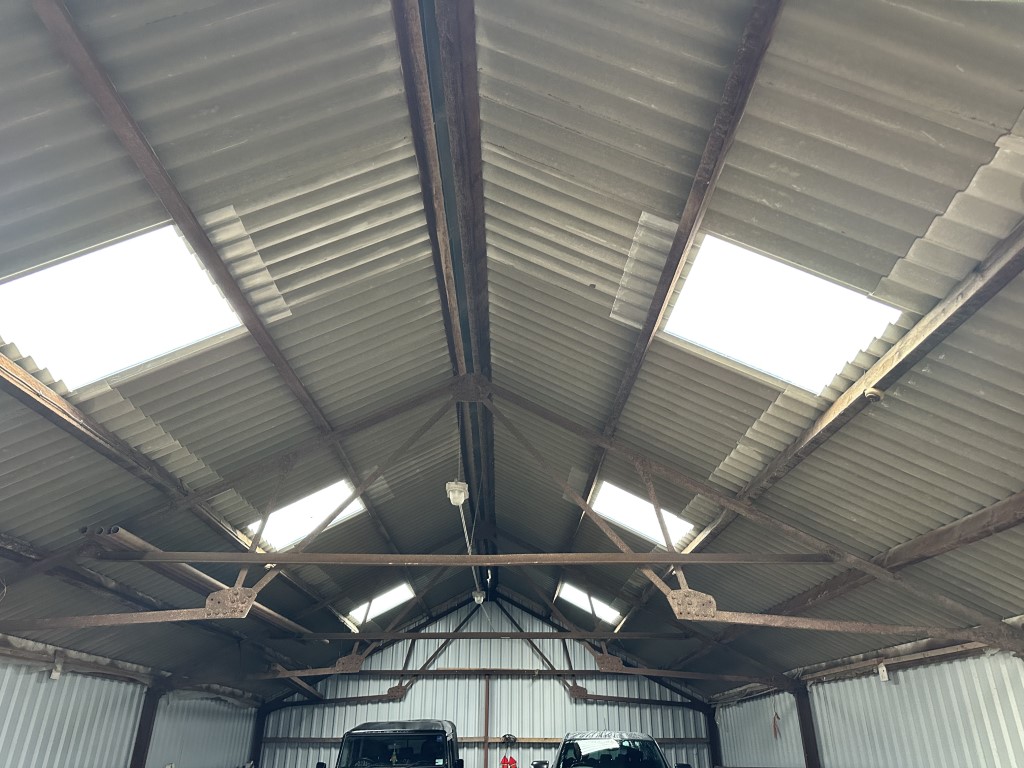

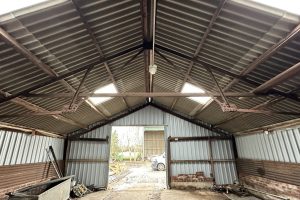

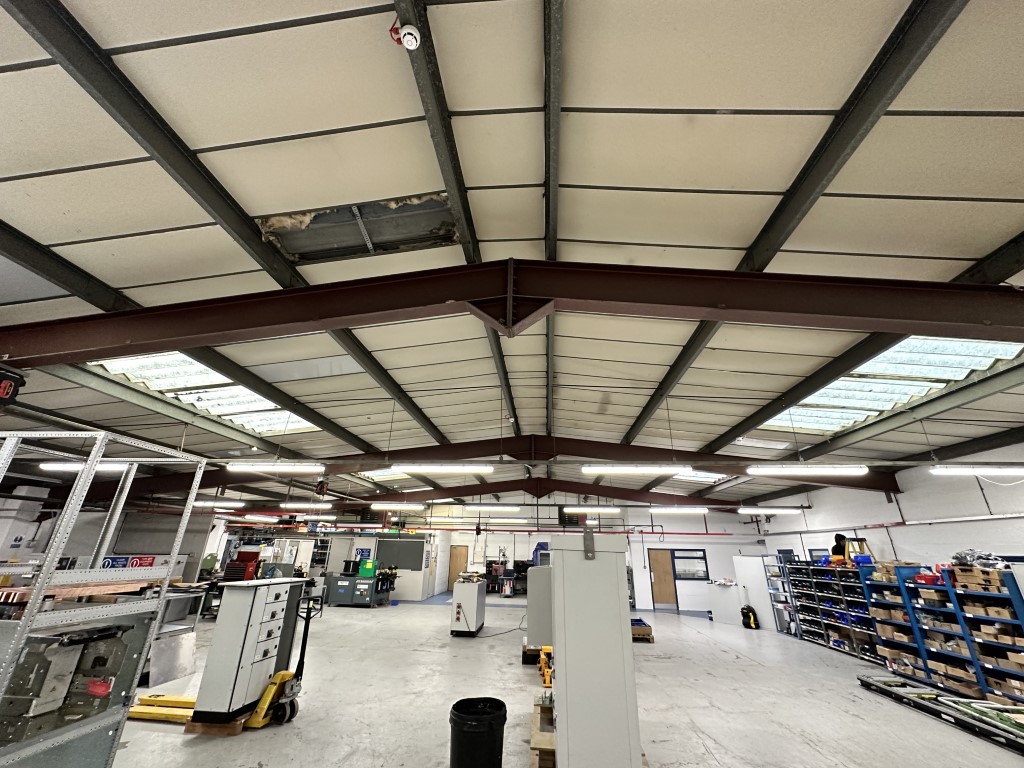

Look at the difference renewing the GRP translucent roof lights has made to the natural light entering into this old workshop building.

It has completely transformed the building.

Gallery

Lower Peover – Grain Store Height extension and building refurbishment

January 2, 2024

Lower Peover – Grain Store Height extension and building refurbishment

mark Projects

Project Details

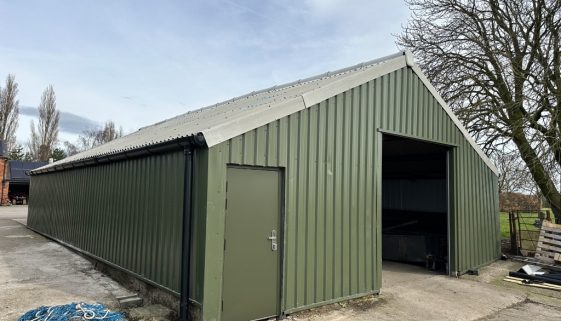

Height extension and a complete building refurbishment to an existing steel framed grain store Agricultural building

We took the old roof and sides off, along with the timber purlins and steel rafters

The project was designed by our structural engineer to enable us to extend the height of the steel stanchions with steel plates to connect old to new

The existing steel work on the building was prepared and painted

We installed the existing steel rafters / wind bracing and timber purlins

We then Installed a new Eternit fibre cement profile 6 roof

The sides and ends were re cladded with juniper green plastisol coated box profile steel sheets and flashings to suit

Also installed was a anti vermin flashing to the perimeter of the building

And a new steel galvanised three phase roller shutter door to finish the job off

Gallery

Marton – New Butchers building

January 2, 2024

Marton – New Butchers building

mark Projects

Project Details

New Butchers, Marton – Bespoke steel framed building and ground works

This was a complete turn key job from the foundations to completion of the building for W H Frost Butchers

The building was designed from the customers plans, fabricated and constructed to suit their butchery business requirements

The roof was cladded with 80mm insulated composite panels and the walls in 60mm thickness both in Juniper green with flashings to suit

We also included two loading bay canopies at each end of the building over both roller shutter doors

100mm concrete panels were installed to the perimeter at 2.0m high with a shredder flashing around the top of the panels

Finished off with a pedestrian door and two insulated roller shutter doors, both finished in Juniper green

We completed the ground works and new concrete power floated floor to accommodate the different levels within the building floor footprint, required for the fridges and freezers

Also installed was a stainless steel aco drain, central within the building floor.

Gallery

Kelsall – Dutch Barn Refurbishment

January 2, 2024

Kelsall – Dutch Barn Refurbishment

mark Projects

Project Details

The old Dutch Barn has been brought back to life with a full building refurbishment – it looks fantastic.

We stripped off the old steel roof and sides

The existing steel work was prepared and painted black

New timber rails were installed to carry the wall cladding

We re cladded the roof and walls in black plastisol coated profile 3 steel sheets

From an run down Agricultural Dutch Barn to re-purposed domestic garages

Gallery

Chester – New general purpose light industrial building

January 2, 2024

Chester – New general purpose light industrial building

mark Projects

Project Details

General purpose light industrial building

New steel framed building – Fire damaged replacement

75ft long x 25ft wide x 12ft to the eaves

Foundations / Design / Fabrication / Construction and concrete floor work

40mm thick insulated composite panels to the roof and walls in Juniper Green

1.0m high concrete panels to the perimeter of the building

Front gable openings for a roller shutter and pedestrian door

Concrete floor works to be completed at a later date due to a waterlogged site

Gallery

Kings Stanley – Roof Refurbishments on two buildings

July 18, 2023

Kings Stanley – Roof Refurbishments on two buildings

mark Projects

Project Details

Roof refurbishment on two buildings – one is an existing concrete framed agricultural building which has been diversified from a cattle shed and is now being used as a cafe / coffee shop

The other building is also an existing agricultural steel framed building which is now being used for storage and camping facilities – both on the same farm in the Cotswold

We removed the Old roofs and re-cladded them with new 100mm thick insulated composite panels onto existing purlins for the steel framed building, and timber added on top of the concrete purlins to secure the new sheets to – with plastisol coated steel flashings to suit

We also lined the leaking concrete gutter and secured with a black flashing to suit on the outside of the gutter to hold the liner in place
